113 Sanitary Pump Mechanical Seal

The Qixing 113 Sanitary Pump Mechanical Seal is designed for small-shaft food, beverage, dairy and pharmaceutical pumps. Shaft sizes 20 mm to 65 mm, temperature -40°C to +150°C, pressure ≤ 0.6 MPa, speed ≤ 10 m/s. Stocked at the Qixing factory for OEM, wholesale and MRO supply worldwide.

Send Inquiry

Product Description

Specifications

Parameter	Value	Parameter	Value
Shaft diameter	20 mm to 65 mm (10 sizes)	Stationary face	Ceramic / SiC
Temperature	-40°C to +150°C	Rotary face	Carbon / SiC
Pressure	≤ 0.6 MPa	Bellows elastomer	EPDM / FKM (food-grade)
Shaft speed	≤ 10 m/s	Surface finish	Ra ≤ 0.8 µm (≤ 0.4 µm on request)

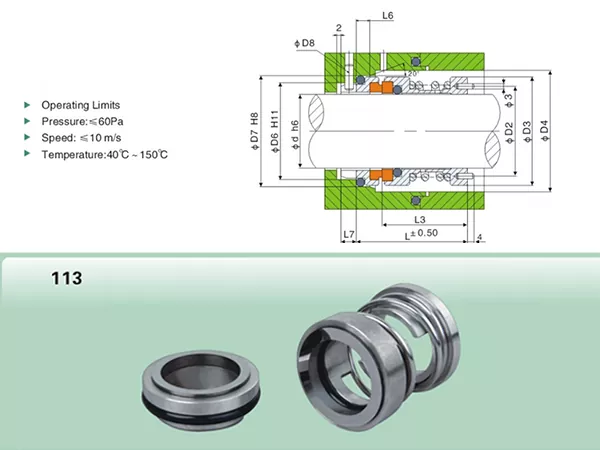

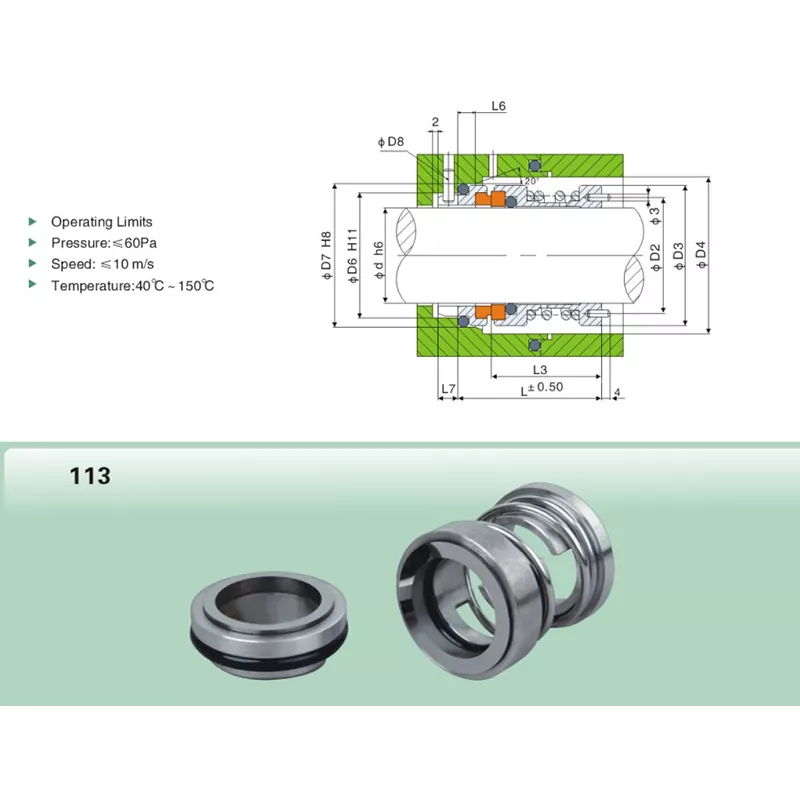

Dimensions Chart

All dimensions in millimetres. Ten standard shaft sizes; intermediate sizes available as custom orders.

Model	d	D2	D3	D4	D6	D7	L	L3
113-20	20	27	34	36	29	35	33	23
113-25	25	32	39	41	34	40	35	24.5
113-30	30	37	44	46	39	45	39	27.5
113-35	35	42	49	51	44	50	39	27.5
113-40	40	48	56	60	51	58	44	31
113-45	45	53	61	65	56	63	44	31
113-50	50	58	66	70	62	70	49	35
113-55	55	63	71	75	67	75	49	35
113-60	60	70	79	83	72	80	59	46
113-65	65	75	84	88	77	85	59	46

Specify at Order — Five Things to Confirm

Most 113 quotation cycles speed up if these five points are confirmed in the first email. Each one changes the elastomer compound, face material or surface finish in the order.

Shaft diameter. Measure at the seal cavity itself, not the pump nameplate. Cavity bore occasionally differs from nominal shaft size by 0.5 to 1 mm.
Pumped media. Temperature, pH, sugar / fat / protein content. Sugar above 30% degrades NBR; fat content above 5% changes face wear pattern; pH below 4 or above 11 limits elastomer choice.
CIP / SIP conditions. Cleaning solution composition (caustic, peracetic, hot water), dwell time, and peak temperature. CIP above +130°C requires FKM elastomer; SIP above +120°C requires SiC / SiC face pair.
Regulatory grade. FDA 21 CFR 177.2600 (US food contact), EU 1935 / 2004 (European food contact), USP Class VI (pharmaceutical biocompatibility). Specify which scope applies — the elastomer compound differs.
Surface finish. Standard 113 ships at Ra ≤ 0.8 µm. For 3-A Sanitary Standards or EHEDG cleanability requirements, request Ra ≤ 0.4 µm at order; no extra tooling charge above MOQ.

Applications

Dairy product transfer (milk, cream, yoghurt base, cheese liquid)
Beverage filling lines (juice, soft drinks, beer, wine)
Bakery and confectionery (syrups, fats, chocolate, glazes)
Pharmaceutical dosing and small-batch transfer pumps
Cosmetic and personal care manufacturing pumps
OEM small-shaft pump platforms (wholesale supply at annual contract pricing)

Manufacturing

Faces lapped to ≤ 0.0009 mm flatness. Rubber bellow tested for durometer, compression set and elongation per batch. Food-grade elastomer compounds qualified per FDA 21 CFR 177.2600 where specified. Certificate of Conformity, material certificate and dimensional report ship with the order.

Quotation

Same-day factory quotation. Stock sizes ship 3–7 days; OEM custom configurations 15–25 days. Buy the 113 sanitary pump mechanical seal direct from the Qixing factory in China at OEM and wholesale pricing.
