Z2 Single Spring Mechanical Seal

Need a wide-temperature single spring mechanical seal? The Qixing Z2 Single Spring Mechanical Seal handles -40°C to +200°C and 15 m/s in shaft sizes from 10mm to 100mm. As a China mechanical seal factory, Qixing supplies OEM pump builders and distributors with wholesale Z2 seals at competitive prices. Request a quotation today.

Send Inquiry

Product Description

The Qixing Z2 single spring mechanical seal is an O-ring design built for water, sewage, oil and moderately corrosive fluids across a wider operating range than rubber-bellow seals. It follows the standard Type 2 / 502 envelope used in centrifugal pumps, booster pumps and chemical transfer pumps.

Unlike rubber-bellow seals, the Z2 mechanical seal uses elastomer O-rings (NBR, EPDM or FKM) as the secondary seal, delivering stable performance from -40°C to +200°C, up to 1.0 MPa and shaft speeds of 15 m/s. Qixing manufactures the full Z2 size range from 10mm to 100mm in-house, supplying OEM pump assemblers, MRO distributors and wholesale buyers worldwide. Contact our team to buy Qixing Z2 mechanical seals at factory prices.

Product Parameter (Specification)

Operating Conditions & Materials

Parameter	Value	Parameter	Value
Shaft Diameter (d)	10 - 100 mm	Stationary Ring	SiC / TC / Carbon
Temperature	-40°C ~ +200°C	Rotary Ring	SiC / Carbon / TC
Pressure	≤ 1.0 MPa	Secondary Seal (O-ring)	NBR / EPDM / FKM
Shaft Speed	≤ 15 m/s	Spring & Metal Parts	SS304 / SS316
Rotation	Bi-directional	Equivalent Models	Standard Type 2 / 502 envelope

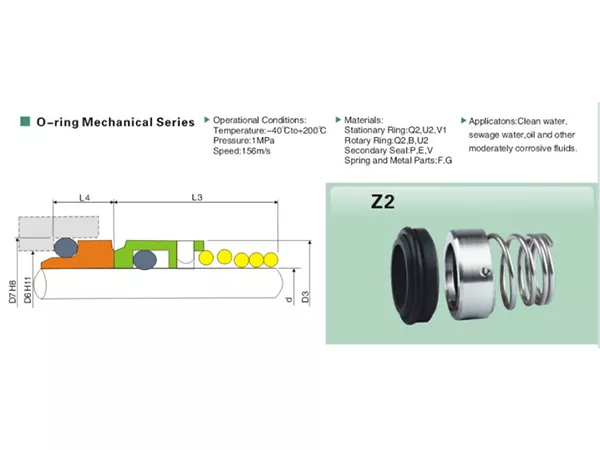

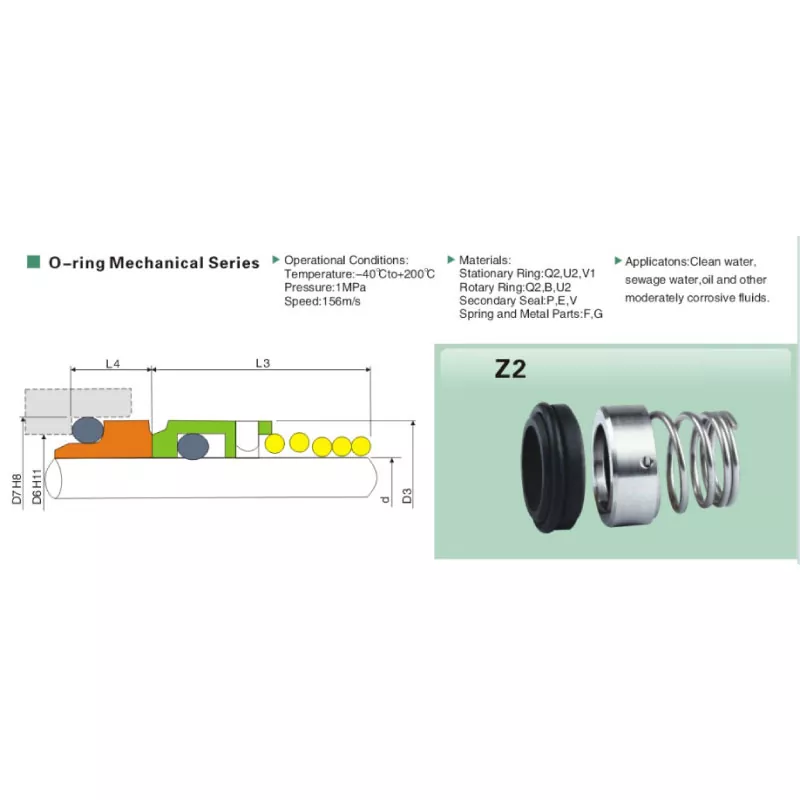

Dimensions Chart (all sizes in mm)

Model	d	D7	D6	D3	L3	L4
Z2-10	10	18.10	14	19.00	15.00	5.50
Z2-11	11	20.60	16.5	21.00	18.00	5.50
Z2-12	12	20.60	16.5	21.00	18.00	5.50
Z2-13	13	23.10	19	23.00	22.00	6.00
Z2-14	14	23.10	19	23.00	22.00	6.00
Z2-15	15	26.90	21	24.00	22.00	7.00
Z2-16	16	26.90	21	26.00	23.00	7.00
Z2-18	18	30.90	25	29.00	24.00	7.00
Z2-19	19	30.90	25	31.00	25.00	8.00
Z2-20	20	30.90	25	31.00	25.00	8.00
Z2-21	21	35.40	30	33.00	25.00	8.00
Z2-22	22	35.40	30	33.00	25.00	8.00
Z2-23	23	35.40	30	35.00	27.00	8.00
Z2-24	24	35.40	30	35.00	27.00	8.00
Z2-25	25	38.20	33	36.00	27.00	8.00
Z2-26	26	38.20	33	36.00	27.00	8.50
Z2-28	28	43.30	38	40.00	29.00	9.00
Z2-30	30	43.30	38	43.00	30.00	9.00
Z2-32	32	43.30	38	46.00	30.00	9.00
Z2-33	33	53.50	45	46.00	39.00	11.50
Z2-34	34	53.50	45	49.00	39.00	11.50
Z2-35	35	53.50	45	49.00	39.00	11.50
Z2-36	36	53.50	45	49.00	39.00	11.50
Z2-37	37	53.50	45	49.00	39.00	11.50
Z2-38	38	60.50	52	53.00	39.00	11.50
Z2-40	40	60.50	52	56.00	39.00	11.50
Z2-42	42	60.50	52	59.00	39.00	11.50
Z2-43	43	60.50	52	59.00	39.00	11.50
Z2-44	44	65.50	57	61.00	41.00	11.50
Z2-45	45	65.50	57	61.00	41.00	11.50
Z2-48	48	65.50	57	64.00	41.00	11.50
Z2-50	50	72.50	64	66.00	45.00	11.50
Z2-55	55	72.50	64	71.00	47.00	11.50
Z2-60	60	79.30	72	78.00	49.00	11.50
Z2-65	65	84.50	77	84.00	51.00	11.50
Z2-70	70	89.50	82	89.00	51.00	11.50
Z2-75	75	94.50	87	98.00	57.00	11.50
Z2-80	80	99.50	92	100.00	59.00	11.50
Z2-85	85	105.50	98	107.00	59.00	13.50
Z2-90	90	111.50	105	111.00	62.00	13.50
Z2-95	95	116.50	110	119.00	62.00	13.50
Z2-100	100	119.50	114	123.80	75.00	13.50

Product Feature And Application

Key Features

Wide operating envelope — the Z2 mechanical seal works from -40°C to +200°C and up to 15 m/s, a broader range than standard rubber-bellow seals.
O-ring secondary seal — easier to inspect and replace; FKM O-rings make the Z2 single spring mechanical seal suitable for moderately corrosive media.
Compact installation — short axial length (L3 from 15 to 75 mm) lets the Z2 fit tight pump seal cavities where bellows seals will not.
Drop-in replacement — Qixing Z2 envelope dimensions follow the Type 2 / 502 standard, so the seal interchanges with widely used O-ring single spring seal cavities without pump modification.

Typical Applications

Centrifugal water and booster pumps in HVAC and building services
Industrial sewage, slurry and drainage pumps
Chemical and pharma transfer pumps handling moderately corrosive fluids
Hot oil and thermal-fluid circulation pumps (with FKM O-rings)
Food-grade and clean-in-place (CIP) pumps with EPDM O-rings
OEM pump manufacturing — wholesale Z2 mechanical seal supply for private-label builds

Production Details

Seal face lapping defines Z2 reliability. Qixing laps each face to ≤ 0.0009 mm flatness (≤ 3 helium light bands), verified on a monochromatic light tester. Tight flatness control is what gives a Qixing Z2 mechanical seal its leak-free service life under high-temperature duty.

Every O-ring is moulded from peroxide-cured compounds — NBR for water and mild hydrocarbons, EPDM for hot water and weak chemicals, FKM for higher temperatures and aggressive fluids. Carbon faces are resin-impregnated, SiC is pressureless-sintered SSiC, and tungsten carbide uses cobalt-bonded YG6/YG8.

Each Z2 mechanical seal is dimensioned, flatness-checked, spring-load tested and visually inspected before packing. Stock sizes ship in 3-7 days; OEM custom orders in 15-25 days. Contact Qixing for a same-day Z2 mechanical seal quotation and bulk discount on wholesale orders.
