Z1 Single Spring Mechanical Seal

The Qixing Z1 single spring mechanical seal is a general-purpose rotary shaft seal for clean water pumps, sewage pumps, submersible pumps and light chemical pumps handling water, oil and weak corrosive media. It follows the industry-standard Type 21 envelope, making it compatible with the most widely used rubber-bellow single spring seal cavities on the market.

Built with a single coil spring and rubber bellows secondary seal, the Z1 mechanical seal operates from -20°C to +150°C, up to 1.0 MPa and 13 m/s. As a Chinese Z1 mechanical seal factory with in-house machining, lapping and assembly, Qixing supplies OEM pump builders, distributors and MRO buyers worldwide. Contact us to buy Qixing Z1 mechanical seals at competitive factory prices.

Product Parameter (Specification)

Operating Conditions & Materials

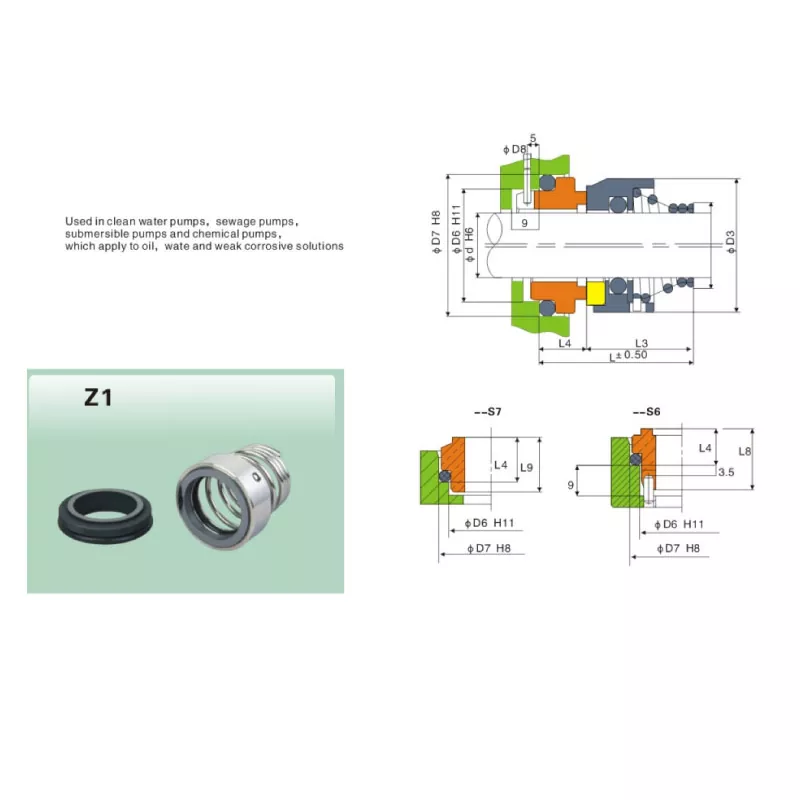

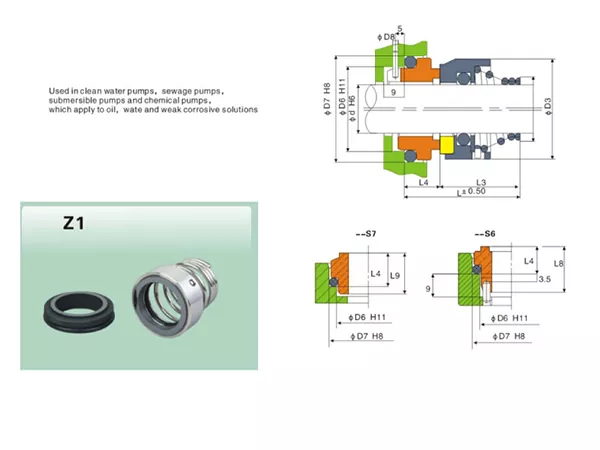

Dimensions Chart (all sizes in mm)

Product Feature And Application

Key Features

• Multiple face materials — Ceramic/Carbon for clean water, Silicon Carbide/Carbon for sewage and abrasives, Tungsten Carbide/Tungsten Carbide for chemical duty. Specify the material code at order.
• Bi-directional rotation — The symmetrically wound spring works in both CW and CCW pumps, simplifying stock for Z1 mechanical seal distributors.
• Self-compensating spring — The coil spring pushes the rotary face forward as wear occurs, maintaining contact pressure throughout the service life.
• Drop-in replacement — Qixing Z1 envelope dimensions follow the Type 21 standard used industry-wide, so the seal interchanges with common single spring rubber-bellow cavities without pump modification.

Typical Applications

• Water supply, treatment and HVAC circulation pumps
• Submersible sewage and drainage pumps
• Light chemical and dosing pumps (weak acids, alkalis, solvents)
• Agriculture, irrigation and well pumps
• Marine seawater cooling and bilge pumps
• OEM pump manufacturing — private-label Z1 single spring mechanical seal supply

Production Details

Seal face lapping is the critical step. Qixing laps both faces to ≤ 0.0009 mm flatness (≤ 3 helium light bands), verified on a monochromatic flatness tester — the key to long Z1 mechanical seal service life.

Materials are sourced and qualified in-house: 99% Al₂O₃ ceramic, pressureless-sintered SSiC, cobalt-bonded YG6/YG8 tungsten carbide, and resin-impregnated carbon graphite. Bellows use peroxide-cured NBR, EPDM or FKM matched to the customer's media.

Every Z1 mechanical seal goes through dimensional check, face flatness verification, spring load test and visual inspection before packing. Lead time is 3-7 days for stock sizes and 15-25 days for OEM custom orders. Contact Qixing for a same-day Z1 mechanical seal quotation.
