Single-Spring vs. Multi-Spring Selection Debate — Operating Conditions Outweigh Spring Count

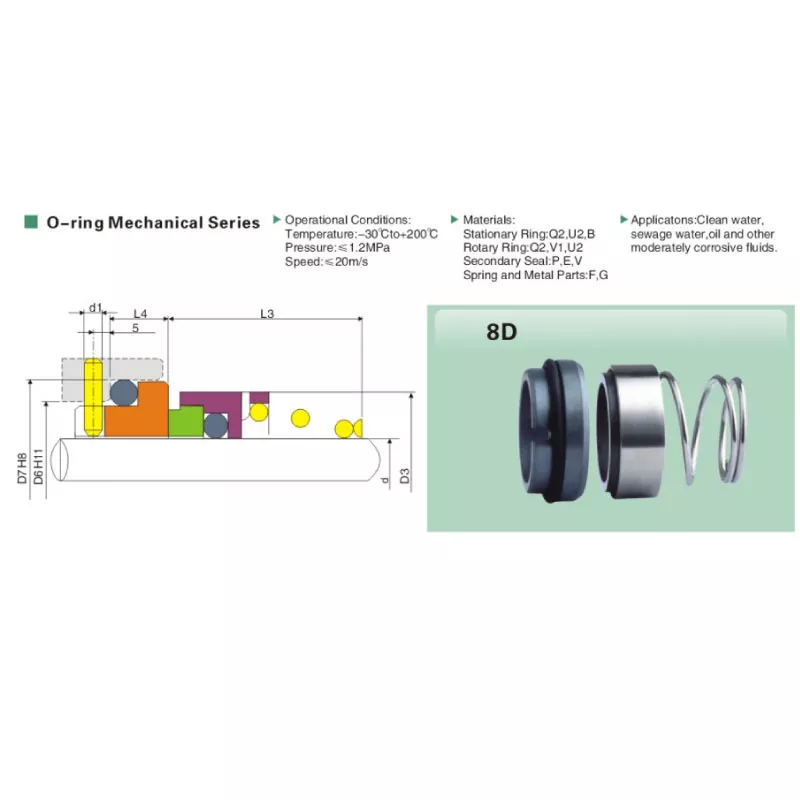

In the field of mechanical sealing engineering, the selection debate between single-spring and multi-spring designs has long been a technical discussion. According to industry technical materials and standards, the difference lies in the distribution of compensating force. The single-spring design relies on one large spring concentrated at the shaft center, featuring simple structure, fewer components, and lower sensitivity to impurities and crystallized substances in the medium, offering higher reliability in corrosive or particulate-laden environments. Additionally, newer designs such as single-diaphragm drive spring components are attempting to further reduce axial footprint for confined cavities and address installation and maintenance challenges.

However, the single-spring design has limitations: in large shaft diameter or high-speed rotation conditions, face pressure uniformity is poor, and the single large spring may experience deflection or deformation under centrifugal force. In contrast, multi-spring structures offer more uniform face pressure in high-speed and large-diameter applications but require higher medium cleanliness. Industry standards such as JB/T 11107-2023 and documents from general machinery associations indicate that the core decision factor in selection is not the number of springs, but the specific operating conditions including pressure, temperature, medium characteristics, and equipment speed. Practical cases show that after multi-spring seals failed frequently due to medium crystallization, switching to a sealing solution better suited to the conditions effectively resolved the issue, confirming the principle of "matching the design to the application".
