301 Rubber Bellow Mechanical Seal

The 301 Rubber Bellow Mechanical Seal designed for clean water and circulation duty — domestic booster pumps, small irrigation pumps, dishwasher and laundry pumps, condensate pumps, aquarium and pond pumps, swimming pool circulators. For OEM pump builders shipping high-volume small-shaft pump platforms, the 301 is the wholesale-priced sealing solution that fits every shaft size in the bill of materials without custom tooling.

Variant Code Decoder

Beyond standard model codes, the 301 ships in two geometry variants distinguished by suffix on the model number. The decoder below explains what each suffix means at the order line:

Example: the 301-15 is the standard 15 mm shaft variant; the 301-15P is the same shaft size with the precision gland geometry. Both ship from the same Qixing stock, so OEM buyers can mix standard and variant codes on the same purchase order without separate MOQ commitments.

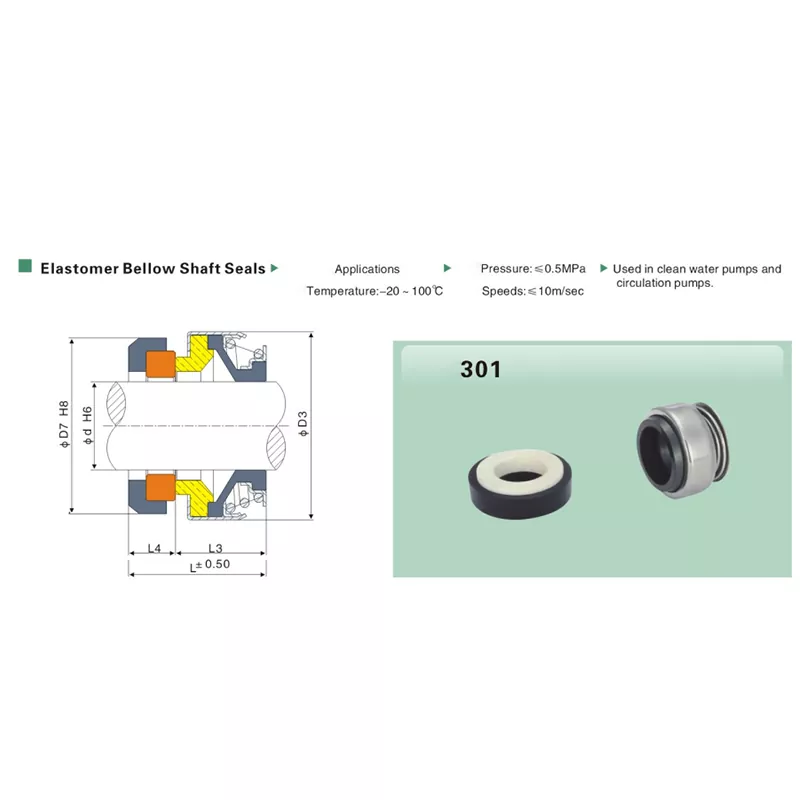

301 Rubber Bellow Mechanical Seal Specifications

Dimensions Chart — 38 Standard Sizes

All dimensions in millimetres. Notice the shaft size coverage — every integer mm from 6 to 28 is represented (with variant codes where appropriate), then increments shift to 2 mm and 5 mm steps for larger sizes where commercial pump shaft diameters are themselves coarser.

Why OEM Pump Builders Specify the 301

OEM pump-building is a different sourcing problem from MRO replacement. The pump designer needs a seal that fits the exact shaft diameter chosen for the impeller bore and motor coupling — often an unusual size like 11 mm or 17 mm dictated by the rest of the pump bill of materials, not by what's convenient for the seal manufacturer. Three things about the 301 make it the OEM-friendly choice:

Every common shaft size is stocked

The 301 covers 6, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 30, 32, 35, 38, 40, 45, 50, 55, 60, 65 and 70 mm as standard stock — plus the P and L variants on selected sizes. Where other catalogues force a pump designer to redesign the shaft to suit the seal, the 301 lets the seal fit the shaft.

Wholesale pricing scales with OEM volume

Annual contract pricing on the 301 rubber bellow mechanical seal scales with committed volume. Pump platforms shipping 5,000 to 50,000 units per year see the per-unit cost drop into a band that lets the seal disappear into the overall pump BOM rather than becoming a line item that needs justification to the procurement team.

Bill-of-material stability for multi-year programmes

Qixing stocks 301 inventory across all 38+ size codes year-round and commits to BOM-stable pricing for OEM platforms on annual contract. That means no production line stoppage when a single seal size moves to allocation, and no surprise cost change between budget and actual cost on a 36-month pump platform programme.

OEM Applications Served

• Domestic booster pumps — water supply, pressure-tank circulation, kitchen and bath supply
• Appliance pumps — dishwasher drain, laundry circulation, condensate removal in HVAC
• Pool and spa equipment — swimming pool circulation, spa filtration, decorative water features
• Garden and irrigation — small electric irrigation pumps, fountain pumps, garden booster pumps
• Aquarium and pond — aquarium return pumps, pond circulation, fish farm aeration
• Small commercial pumps — coffee machine boilers, vending machine circulators, espresso steam systems
• Light industrial cooling — small-shaft cooling water pumps in machine tools, welding sets, laser cutters

How Qixing Runs High-Volume 301 Production

The 301 is the highest-volume product in the Qixing rubber bellow mechanical seal range. Standard sizes ship in pallet-quantity batches to OEM accounts that order to monthly schedule rather than to discrete purchase orders. Production runs in series — every common shaft size produced to forecast against annual contract volume — with finished inventory held in size-coded bins for direct picking against schedule release.

Faces are lapped to ≤ 0.0009 mm flatness on monochromatic light tables and verified on every batch; rubber bellow components are batch-tested for compression set, durometer and elongation before assembly. Each finished 301 is dimension-checked at the dispatch stage and packed in OEM-private-label cartons where the buyer's branding has been confirmed at contract.

Standard quality documentation — Certificate of Conformity, dimensional inspection records, material certificates — ships with each release. OEM qualification programmes that require additional sample units, witness-sample test runs or pre-production validation are quoted as a separate line and typically clear in 30 to 45 days from kick-off.

OEM Wholesale Pricing on the 301

Send Qixing the pump platform spec — shaft size distribution by model variant, annual unit volume, packaging requirement — and the OEM team returns an annual contract price grid within two business days. The Qixing 301 rubber bellow mechanical seal is supplied wholesale to OEM pump builders worldwide; same-day quotation, pallet-stock availability, BOM-stable pricing for 12 to 36 month programmes. Buy the 301 direct from the factory in China to take wholesale pricing on the full size range.
