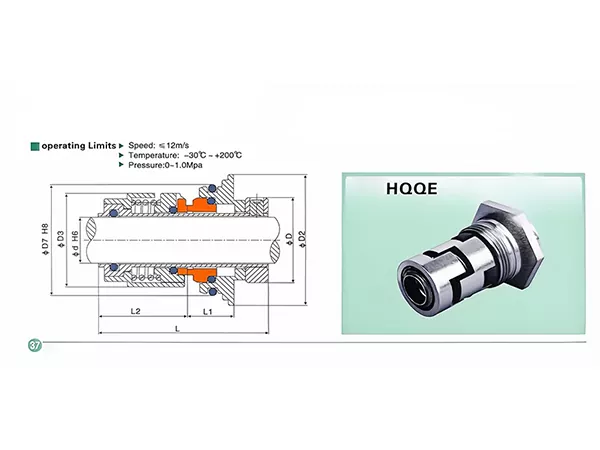

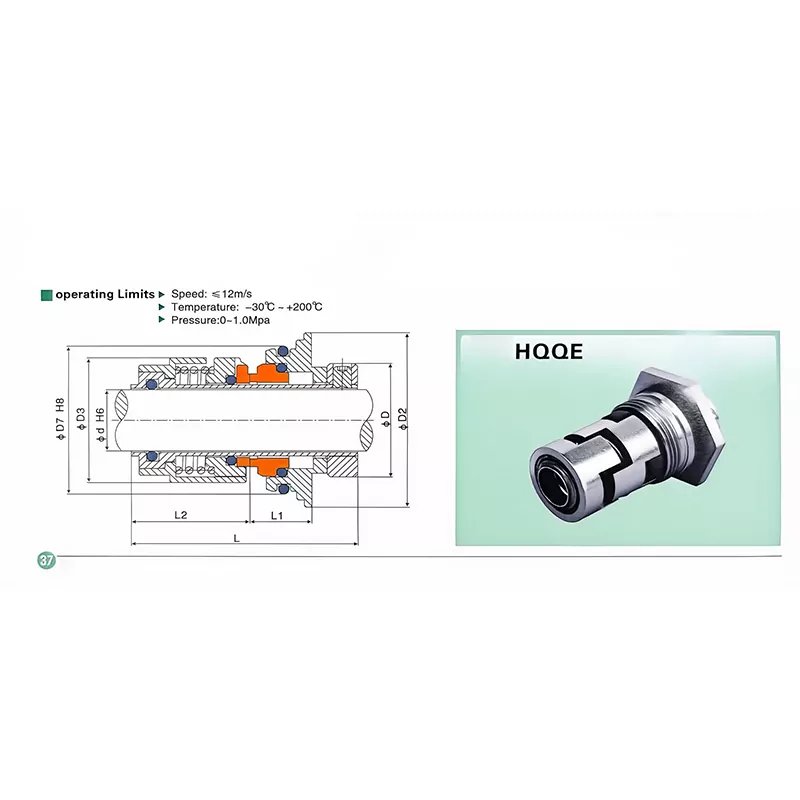

HQQE Grundfos Pump Mechanical Seal

When You Need the Balanced HQQE Instead of the BQQE

The only difference between the two codes is the first letter: B is an unbalanced rubber bellows seal, HQQE Grundfos Pump Mechanical Seal is a balanced O-ring seal. Balance matters as pressure rises. In an unbalanced seal, full seal-chamber pressure pushes the faces together; above roughly 2.5 MPa that closing force overloads the faces and generates heat that shortens life. A balanced seal reduces the hydraulic closing force on the faces, so it runs cooler and lasts longer at high pressure. On a high-stage-count CR pump - where discharge pressure can reach 3 to 4 MPa - the HQQE is the correct choice; the BQQE is fine below that.

Specifications

Compatible Grundfos Pumps

The HQQE Grundfos Pump Mechanical Seal is specified on high-pressure and high-stage-count vertical multistage pumps in the CR and CRN families, and on other Grundfos models rated above the unbalanced-seal pressure limit. Send the pump model and the seal code printed on the pump nameplate, and Qixing confirms exact fitment - shaft size, seal length and seat type - before quotation. Shaft sizes from 12 mm to 48 mm are covered.

Why Buy the Qixing Aftermarket HQQE

A genuine balanced seal for a high-pressure multistage pump is one of the more expensive spare parts in a pump fleet, and lead times on imported spares can run weeks. The Qixing HQQE replicates the balanced design, SiC/SiC faces and EPDM elastomer at a fraction of the genuine-spare cost, with face flatness lapped to ≤ 0.0009 mm. For water utilities and industrial sites running high-pressure CR pumps, the cost and lead-time saving compounds across the fleet.

Applications

• High-pressure water supply and boosting - tall buildings, municipal networks
• Reverse osmosis and desalination - high-pressure membrane feed pumps
• Boiler feed - high-stage-count multistage feedwater pumps
• Industrial high-pressure washing and process feed
• MRO and pump service shops - aftermarket HQQE replacement stock

Manufacturing

Silicon carbide faces lapped to ≤ 0.0009 mm flatness and verified optically. Balanced seal geometry machined to maintain the reduced face-closing ratio of the original. EPDM elastomer qualified for the original temperature range. Certificate of Conformity and material certificate included on request.

Quotation

Send the Grundfos pump model and seal code for a same-day quotation. Stock sizes ship 3-7 days; custom configurations 15-25 days. Buy the HQQE Grundfos Pump Mechanical Seal aftermarket replacement mechanical seal direct from Qixing at OEM and wholesale pricing.

Aftermarket notice: Qixing HQQE seals are aftermarket replacement parts manufactured by Qixing. They are not genuine Grundfos parts, and Qixing is not affiliated with, authorised by, or endorsed by Grundfos. "Grundfos", "CR" and "CRN" are used only to indicate the pumps these replacement seals are designed to fit.
