M74 Multi Spring Mechanical Seal
The Qixing M74 Multi Spring Mechanical Seal fits almost any European pump cavity. Rated to +190C and 1.2 MPa in shaft sizes 14 mm to 100 mm, it is the multi spring mechanical seal to specify when seat-cavity flexibility and high-temperature service matter more than maximum pressure. Buy direct from the Qixing factory in China.
At a Glance
| Seat types | G9 (DIN 24960) standard; G4 and G6 alternatives |
| Temperature | -20°C to +190°C (FKM elastomer) |
| Pressure | ≤ 1.2 MPa |
| Shaft speed | ≤ 15 m/s |
| Shaft sizes | 14 mm to 100 mm (30 sizes) |
| Construction | Multiple coil springs, single-end, bi-directional |
| Lead time | 3-7 days stock; 15-25 days custom OEM |
Three Seat Types, One Seal Range
The seat is what decides whether a seal drops into a given pump cavity. The M74 ships in three standard seats, so a single stocked size covers most centrifugal pump geometries on the market - which is why MRO distributors can replace several legacy seal SKUs with one M74:
- G9 (DIN 24960) - the standard seat and most common European profile; about 70% of M74 orders ship with it.
- G4 - deeper-cavity profile for older European pump housings.
- G6 - API-style cavity for modern pump bodies.
Specifications
| Parameter | Value | Parameter | Value |
| Shaft diameter | 14 mm to 100 mm | Stationary face | SiC / TC / Ceramic |
| Temperature | -20°C to +190°C | Rotary face | Carbon / SiC / TC |
| Pressure | ≤ 1.2 MPa | Elastomer | NBR / EPDM / FKM |
| Shaft speed | ≤ 15 m/s | Spring & metal | SS304 / SS316 |

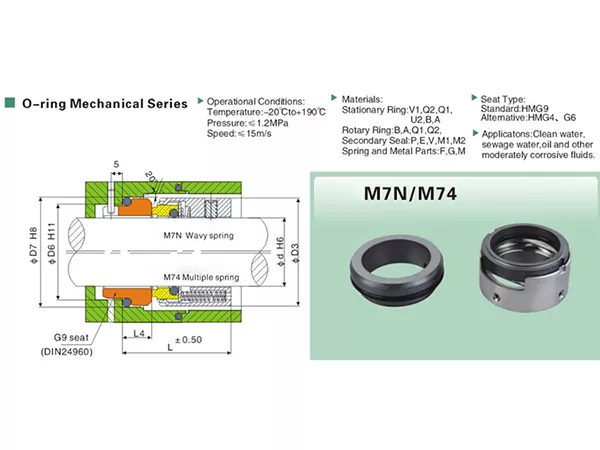

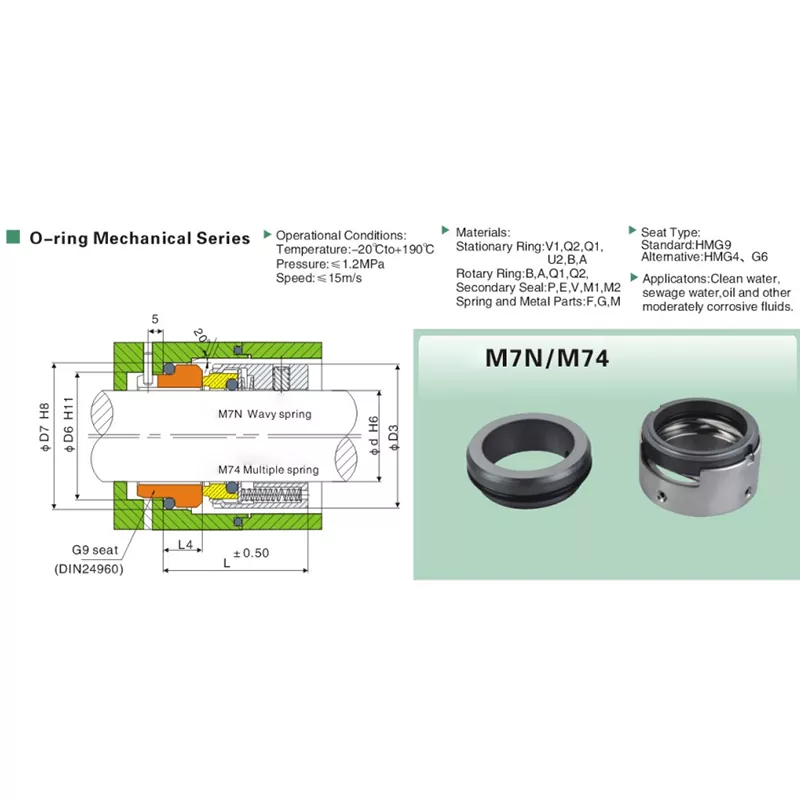

Dimensions Chart
All dimensions in millimetres. Confirm the shaft diameter at the seal cavity before ordering.
| Model | d | D3 | D6 | D7 | L | L4 |
| M74-14 | 14 | 25.0 | 21 | 25.0 | 35.0 | 10.0 |
| M74-16 | 16 | 27.0 | 23 | 27.0 | 35.0 | 10.0 |
| M74-18 | 18 | 33.0 | 27 | 33.0 | 37.5 | 11.5 |
| M74-20 | 20 | 35.0 | 29 | 35.0 | 37.5 | 11.5 |
| M74-22 | 22 | 37.0 | 31 | 37.0 | 37.5 | 11.5 |
| M74-24 | 24 | 39.0 | 33 | 39.0 | 40.0 | 11.5 |
| M74-25 | 25 | 40.0 | 34 | 40.0 | 40.0 | 11.5 |
| M74-28 | 28 | 43.0 | 37 | 43.0 | 42.5 | 11.5 |
| M74-30 | 30 | 45.0 | 39 | 45.0 | 42.5 | 11.5 |
| M74-32 | 32 | 48.0 | 42 | 48.0 | 42.5 | 11.5 |
| M74-33 | 33 | 48.0 | 42 | 48.0 | 42.5 | 11.5 |
| M74-35 | 35 | 50.0 | 44 | 50.0 | 45.0 | 11.5 |
| M74-38 | 38 | 55.0 | 49 | 56.0 | 45.0 | 14.0 |
| M74-40 | 40 | 57.0 | 51 | 58.0 | 45.0 | 14.0 |
| M74-43 | 43 | 60.0 | 54 | 61.0 | 45.0 | 14.0 |
| M74-45 | 45 | 62.0 | 56 | 63.0 | 45.0 | 14.0 |
| M74-48 | 48 | 65.0 | 59 | 66.0 | 45.0 | 14.0 |
| M74-50 | 50 | 67.0 | 62 | 70.0 | 47.5 | 15.0 |
| M74-53 | 53 | 70.0 | 65 | 73.0 | 47.5 | 15.0 |
| M74-55 | 55 | 72.0 | 67 | 75.0 | 47.5 | 15.0 |
| M74-58 | 58 | 79.0 | 70 | 78.0 | 52.5 | 15.0 |
| M74-60 | 60 | 81.0 | 72 | 80.0 | 52.5 | 15.0 |
| M74-63 | 63 | 84.0 | 75 | 83.0 | 52.5 | 15.0 |
| M74-65 | 65 | 86.0 | 77 | 85.0 | 52.5 | 15.0 |
| M74-68 | 68 | 89.0 | 81 | 90.0 | 52.5 | 18.0 |
| M74-70 | 70 | 91.0 | 83 | 92.0 | 60.0 | 18.0 |
| M74-75 | 75 | 99.0 | 88 | 97.0 | 60.0 | 18.0 |
| M74-80 | 80 | 104.0 | 95 | 105.0 | 60.0 | 18.2 |
| M74-85 | 85 | 109.0 | 100 | 110.0 | 65.0 | 18.2 |
| M74-90 | 90 | 114.0 | 105 | 115.0 | 65.0 | 18.2 |
| M74-95 | 95 | 119.0 | 110 | 120.0 | 65.0 | 17.2 |
| M74-100 | 100 | 124.0 | 115 | 125.0 | 65.0 | 17.2 |
How to Specify Your M74
Four choices define an M74 Multi Spring Mechanical Seal order; confirm each at quotation and Qixing handles the rest:
- Shaft size - 14 to 100 mm, measured at the seal cavity (not the pump nameplate).
- Seat type - G9 standard, G4 or G6; no lead-time penalty for any of the three.
- Face pair - Ceramic/Carbon (clean water), SiC/Carbon (sewage), SiC/SiC (hot oil), TC/Carbon (mild chemical), TC/TC (severe duty).
- Elastomer - NBR (water), EPDM (hot water, CIP, weak chemical), FKM (full +190°C range and aggressive media).
Applications
- Chemical processing - moderately corrosive transfer and dosing pumps (FKM elastomer)
- Pharmaceutical and biotech - USP-grade transfer pumps
- Food, beverage and dairy - CIP loops and product transfer (EPDM elastomer)
- HVAC plant rooms - chilled water, hot water and condenser circulation
- Industrial water and wastewater - booster, transfer and lift station duty
- OEM pump manufacturing - wholesale multi spring mechanical seal supply for private-label platforms
Manufacturing
Faces lapped to ≤ 0.0009 mm flatness and verified optically. Multi-spring closing load batch-tested against a master gauge; O-ring durometer checked at incoming inspection. Defective parts are scrapped, not reworked. Certificate of Conformity, material certificates and dimensional reports available on request at no extra charge for OEM accounts.
Quotation
Send the shaft size, seat type, face pair and media for a same-day quotation. Stock sizes ship 3-7 days; OEM custom orders 15-25 days. Buy the M74 multi spring mechanical seal direct from the Qixing factory in China at OEM and wholesale pricing.
